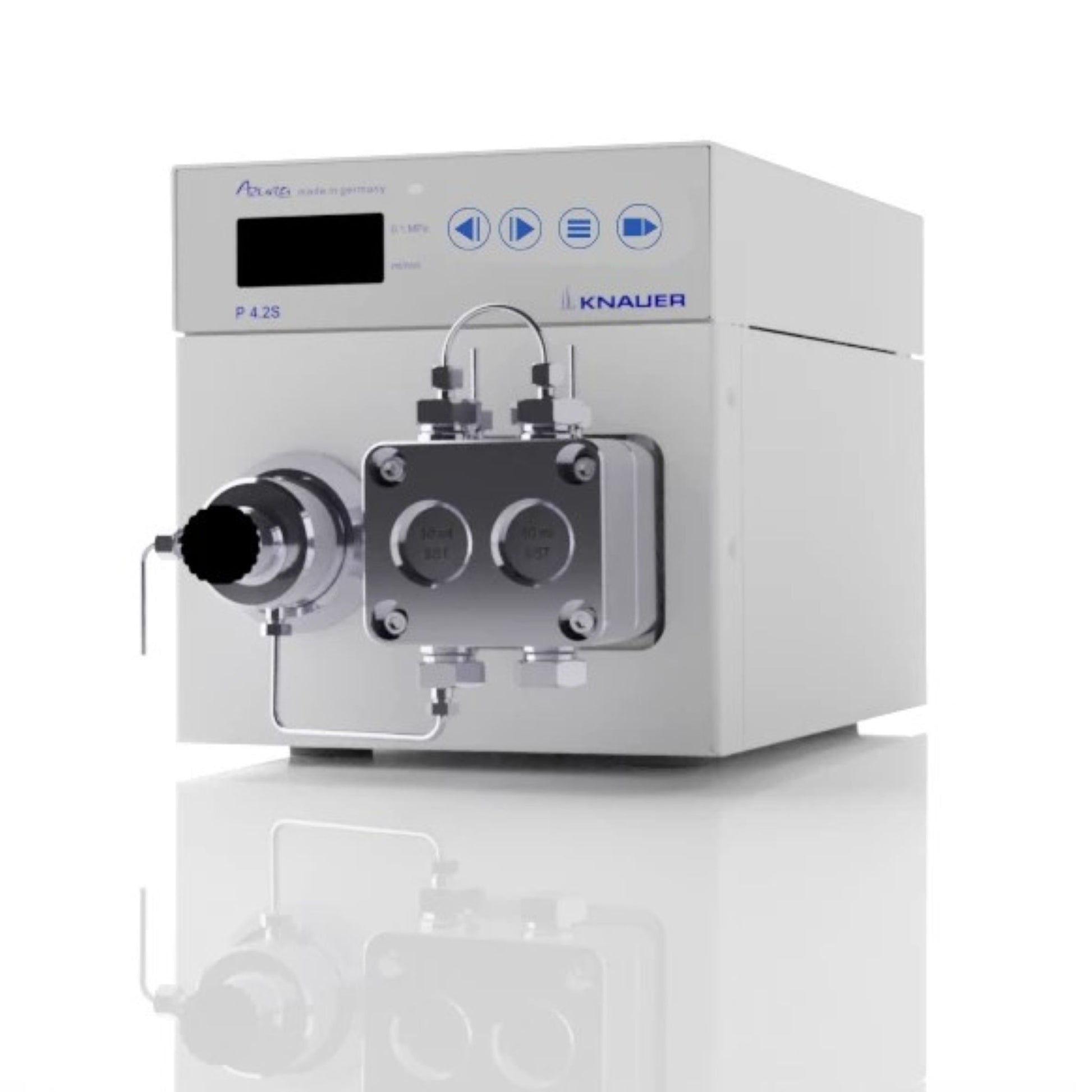

AZURA® P 4.2S HPLC Compact Pump with 10 ml/min Ceramic Pump Head, PEEK Connections

AZURA® P 4.2S HPLC compact pump with 10 ml/min ceramic pump head, PEEK connections

With its small footprint, the compact dual piston pump AZURA® P 4.2S can be used for a wide range of laboratory tasks. It features an integrated pressure sensor, which ensures pressure-independent flow rate accuracy. Moreover, for system protection, the pump drive is switched off when reaching a pre-defined pressure limit. Pump heads with maximum flow rates of 10 and 50 ml/min are available.

A pressure rating of up to 400 bar and chemical resistance to a wide range of eluents make it the perfect choice for LC and dosing applications.

Its exchangeable pump head allows adaptation of the pump for delivery of aggressive media and bioinert applications. The pump head can be heated or cooled with optional accessories.

Specifications:

• Max. flow rate:  10 ml/min
• Flow rate range:  0.001−10 ml/min
• Flow rate increment:  0.001
• Maximum delivery pressure [psi]:  5080 psi
• Maximum delivery pressure [MPa]:  35 MPa
• Maximum delivery pressure [bar]:  350 bar
• Pump head materials:  Ceramic
• Maximum viscosity:  100 cp
• Liquid temperature range:  4−60 °C (39.2−140 °F)
• Gradient:  Isocratic
• Leak management:  No
• Wetted materials:  ceramic, Zirconium oxide, PEEK, ruby, sapphire, aluminum oxide (Al2O3), GFP (graphite fiber reinforced PTFE), FKM, Hastelloy® C, FFKM
• Pump features:  Piston seal wash, Purge valve (manual), Standalone control and programming, Integrated pressure sensor
• Power supply:  100–240 V; 50–60 Hz
