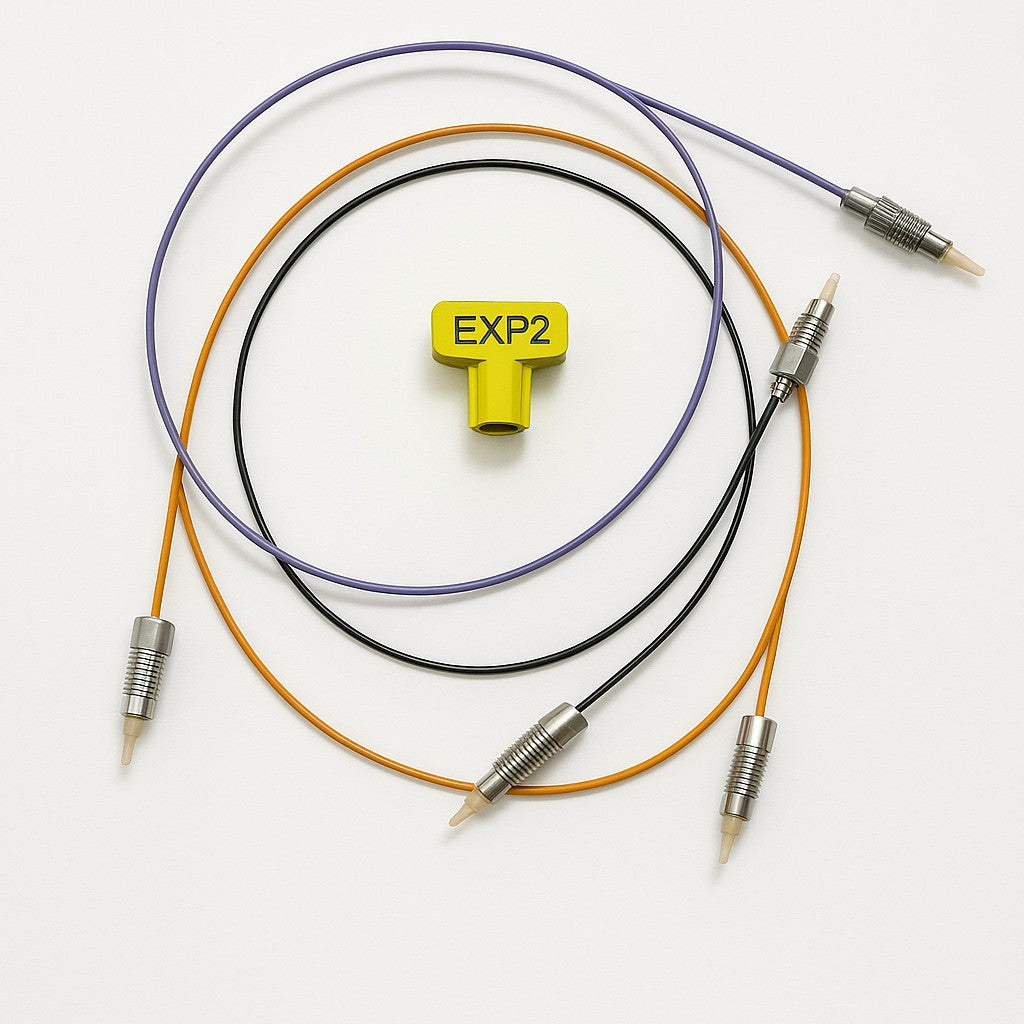

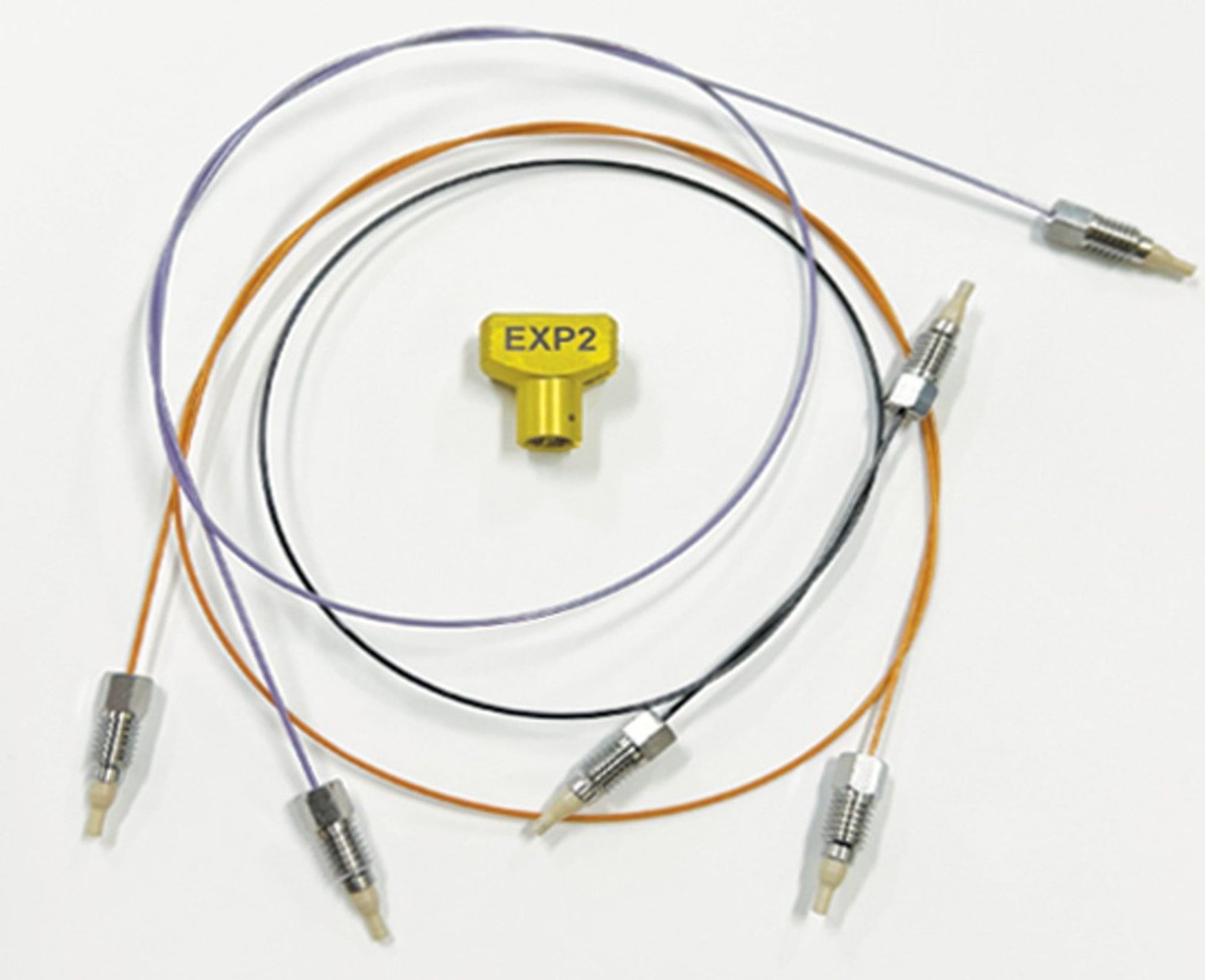

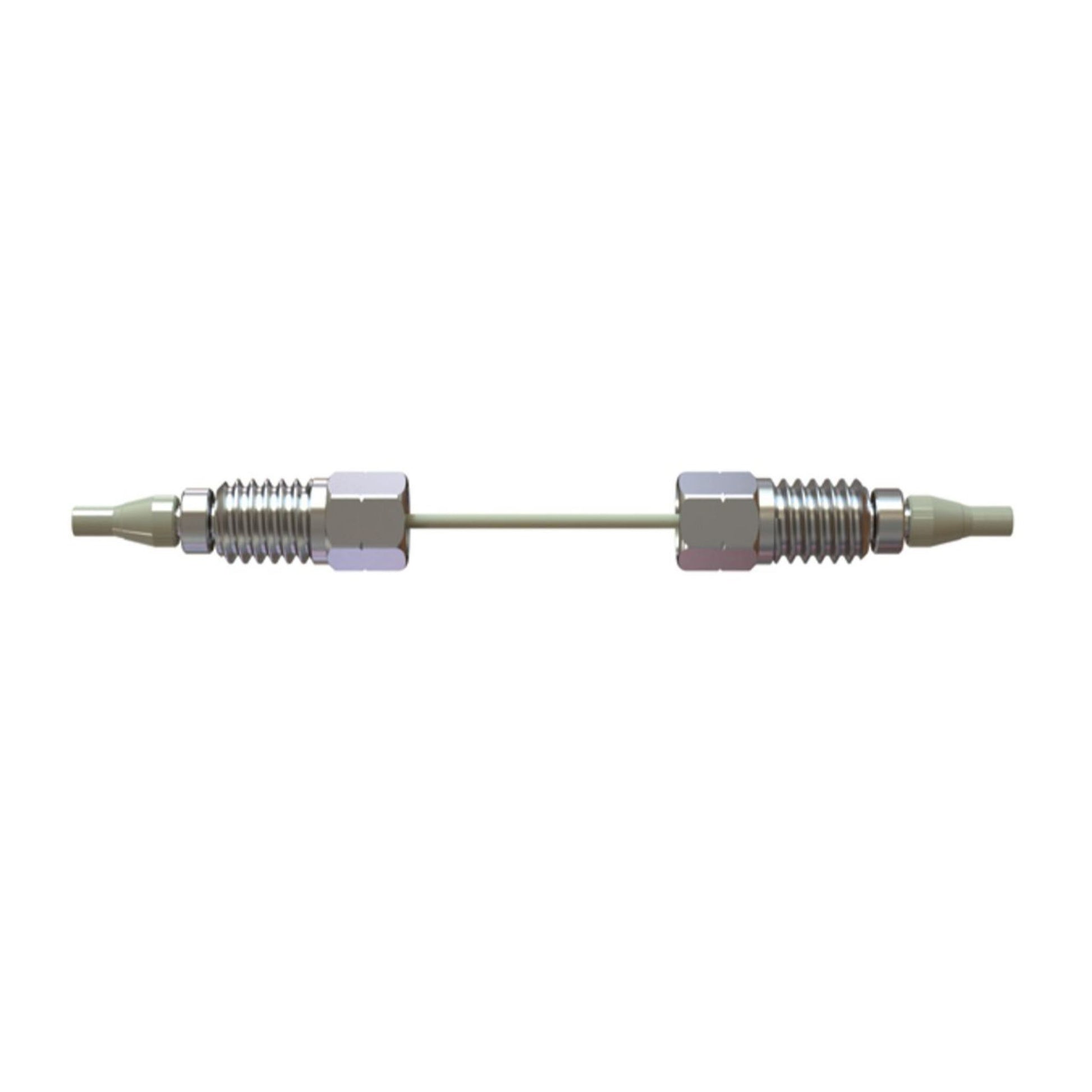

EXP® Ti-REX™ Tubing Set, with 1/32" PEEKsil, 650 x 0.075 mm ID, Black

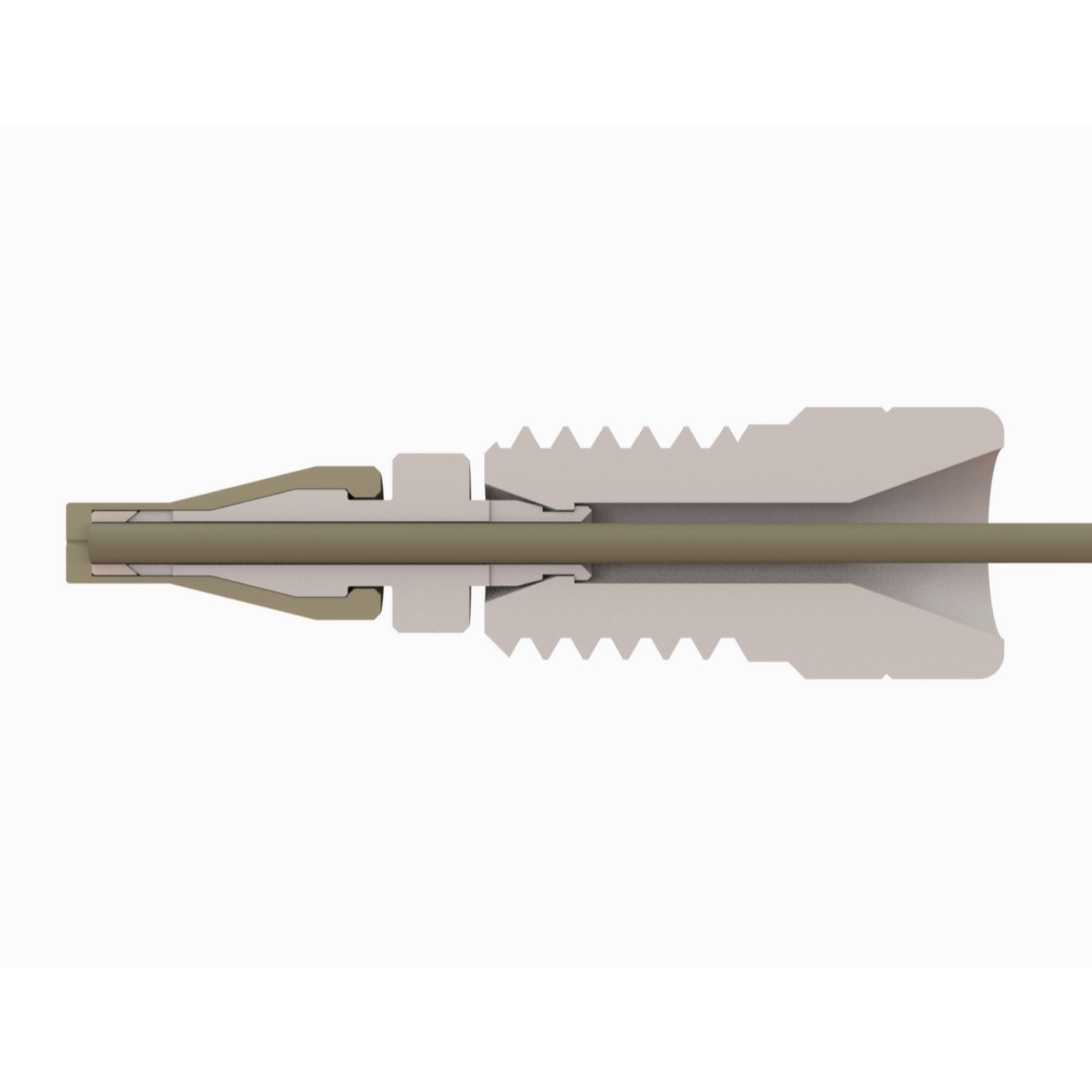

Meet the EXP Ti-REX Fittings, a new, versatile approach to UHPLC connections for any 10-32 port. Utilizing bottom-of-the-port PEEK sealing, combined with EXP Titanium Hybrid Ferrule technology, the Ti-REX family offers robust, leak-free cost cost-efficient solutions. The patented inverted geometric design firmly compresses the PEEK sleeve of the PEEKsil or fused silica tubing against the tube stop of any instrument port, creating a true zero-dead-volume (ZDV) connection without fracturing the fused silica. Ti-REX Fittings can be purchased with a 0.5μm frit embedded in the tip to create an integral filter or capillary column end-fitting for standard 1/16” tubing ports.

Features and Benefits:

• Hand-Tight up to 21,000+ psi (1,500+ bar)
• Robust one-piece design intended for many repeat uses (no loose ferrules)
• Create custom fitting sets, sample loops, capillary column end-fittings, etc.
• Superior corrosion resistance
• Zero-dead-volume (ZDV) connections without the risk of fracturing fused silica tubing or overtightening
• Universal design - fits any 10-32 port
• Leak prevention - does not 'point load'
• PEEK wetted material for biocompatibility
• Simple and versatile - can be used in standard or nano UHPLC and UHPLC/MS applications
• Easily fits into tight spaces - EXP Driver included
• Significant cost savings
