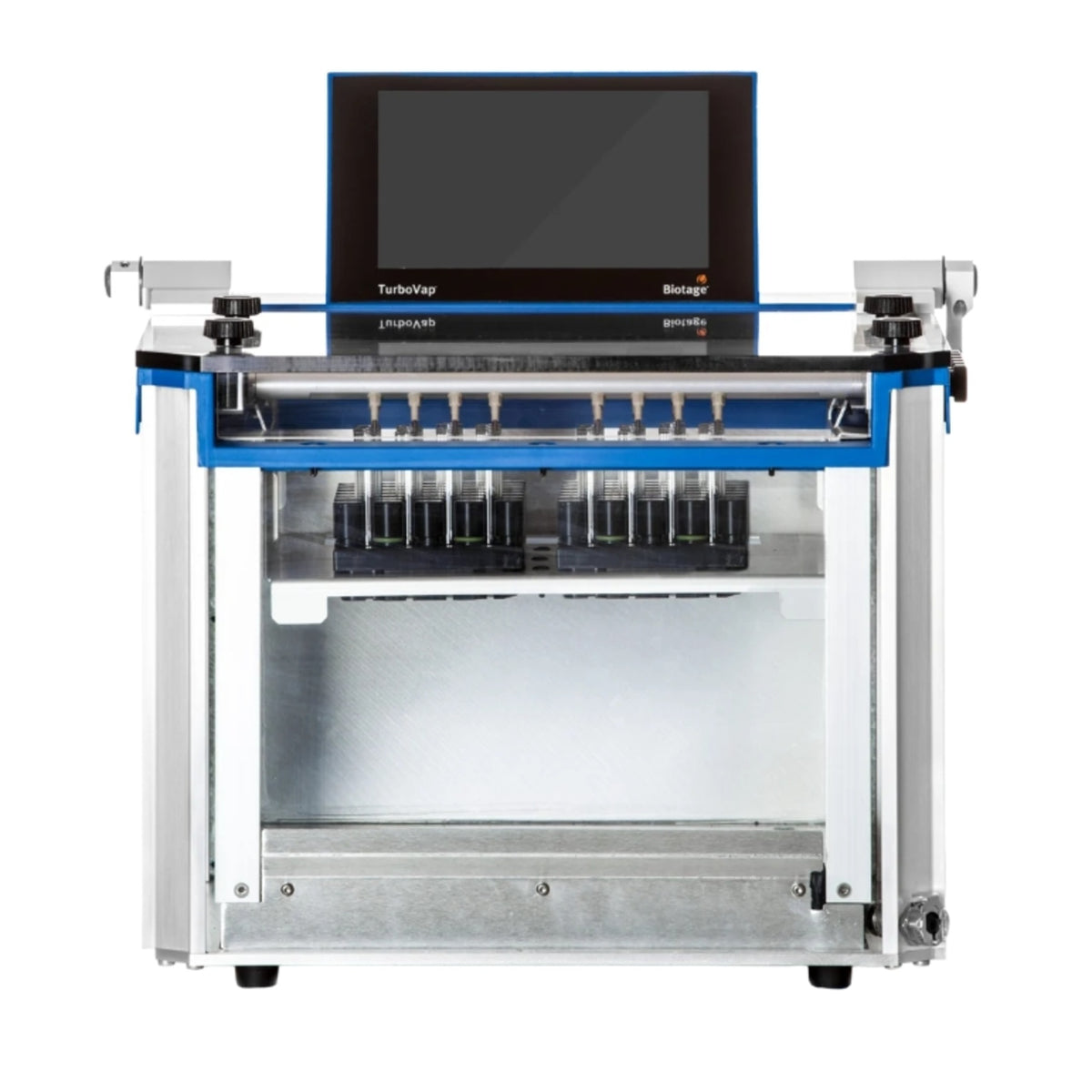

TurboVap® P+ Workstation, Rack must be ordered separately

Nitrogen blowdown evaporator with patented vortex shearing

Process your samples on Biotage® PRESSURE+ 48 Positive Pressure Manifold and transfer straight into the TurboVap® P+. Streamline your workflow.

The new TurboVap® is designed around a common chassis with interchangeable accessories, allowing users to switch quickly between configurations for a wide range of sample sizes and applications. The TurboVap® EH setup allows seamless use of Extrahera sample/collection racks in the new system. The P+ setup allows transfer of samples processed on a Biotage® PRESSURE+ 48 without having to swap racks.

Notable enhancements include a well-lit glass tank for much greater visibility, removable/replaceable nozzles on the lid, on-the-fly nozzle adjustment, easily exchangeable manifolds to extend functionality, programmable evaporation flow gradients, easy access drain port and user friendly touch screen interface. The system can be vented from the bench or placed in a fume hood. Because the footprint is noticeably smaller on the modern unit, less space is required.

**Includes HZ415682SP manifold, but no rack.  Rack must be purchased separately.

Specifications:

• Sample capacity: 48 samples
• Tube compatibility: 12 × 75 mm, 12 × 100 mm,  13 × 75 mm, 13 × 100 mm, 16 × 100 mm
• Interface:  7” touchscreen, USB, Ethernet
• Dimensions (W × D × H):  400 × 400 × 390 mm (lid open: 590 mm)
• Weight: 17 kg empty / 29 kg full
• Operating temperature:  18–32 °C
• Humidity range:  20–80% RH (non-condensing)
• Gas supply requirements:  Min 4 bar, Opt 6 bar, Max 9 bar
• Gas flow requirements:  48 pos: 160–200 L/min
• Maximum gas flow:  48 pos: 3.5 L/min
• Rack integration: Biotage® PRESSURE+ 48
