Inert GC Pathways

Advantages of inert inlet liners and other inlet parts

Depending on your analyte, lack of deactivation in your inlet can show up as a loss of detector response as seen in figure 2, or poor peak shape as in figure 3.

Low detector response is seen when reactive analytes break down easily on contact with active sites in the liner. In figure 2, the only sign of breakdown is the loss of 2,4-DNP response, but with some analytes, degradant peaks appear in your chromatogram. Their peaks are typically well shaped as there is no adsorption to delay their introduction to the column.

Poor peak shape is caused by partial adsorption of the analyte to active sites in the injector. The problem appears as tailing, but the overall peak area is usually not affected. At high analyte concentrations, this effect is mostly a nuisance, but as analyte concentrations approach the limit of detection the lower broader peaks are far more affected by system noise.

Advantages of inert GC columns:

  • Improved response for polar, acidic, and basic compounds.
    • Symmetrical peaks for even active compounds such as pyridine, easy to determine the end
          of the peak.
  • Increased signal-to-noise ratios to improve low-level detection.
    • Narrow peaks without tailing concentrates the signal, raising it further above the noise. In
          the example below, the 0.5ng injection of pyridine provides greater signal to noise ratio on
          the Rxi column than the 1ng injection on a non-Rxi column.
  • Stabilized retention times for positive identifications.
    • At extremely low concetrations, active sites affect enough of the sample to shift the entire peak off the expected retention time.

Application Note: How Column Inertness Improves the Chromatography of Basic Compounds
Not all column deactivations are appropriate for analyzing basic compounds. In this application note we demonstrate the effect of column inertness on peak shape, and discuss its role in improving method accuracy, sensitivity, and development time. Click here to read more.

Advantages of inert detectors

Once you have safely shepherded your sample through injection and separation, your detector can still degrade your analytes before you measure them. To demonstrate the problems of active injector sites in a detector, Restek chemists simulated FIDs with varying degrees of activity in the flow path by moving the tip of their column higher and lower in a standard FID jet.

With normal column installation, all peaks were symmetrical (figure 2).

When the column was installed 1cm lower than the proper position, the sample was exposed to more active sites on the hot steel wall of the jet, causing active analytes to tail (peaks 1-4 and 6). Non reactive alkane peaks remained symmetrical, indicating that the observed tailing was not a result of a poor physical flow path.

For many analytes, proper column positioning is sufficient to prevent peak tailing, but with the most active analytes Restek’s Siltek treated FID jets put a combination of high purity silica and an organic deactivation layer between your sample and potential catalytic or adsorption sites in your detector.

Products

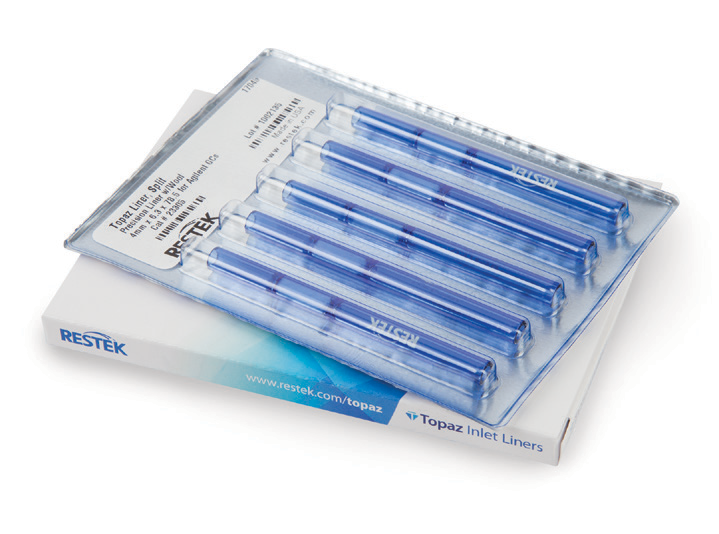

  • Restek Topaz Inlet Liner

    • Increase accuracy and reproducibility with state-of-the-art deactivation.
    • Achieve lower detection limits for a wide range of active compounds.
    • Use wool with confidence—new quartz wool is deactivated after packing, preventing the loss of sensitive analytes.
    Topaz inlet liners from Restek are extensively tested to assure consistent product quality. The color and label have been shown not to interfere with analyses or contribute to background. Choose blue—the best liner for sensitive applications.

  • Restek Rxi® Columns

    3-in-1 Technology: Highest Inertness
    • Lowest Bleed Exceptional Reproducibility
    • Low Bleed - Extend column lifetime
    • Excellent Inertness - Obtain lower detection limits for active compounds
    Phases Available:
    Rxi®-1ms, Rxi®-1HT, Rxi®- 5ms, Rxi®-5Sil MS, Rxi®-5HT, Rxi®-XLB,
    Rxi®-624Sil MS, Rxi®-35Sil MS, Rxi®-17, Rxi®-17Sil MS, Rxi® guard/retention gap columns

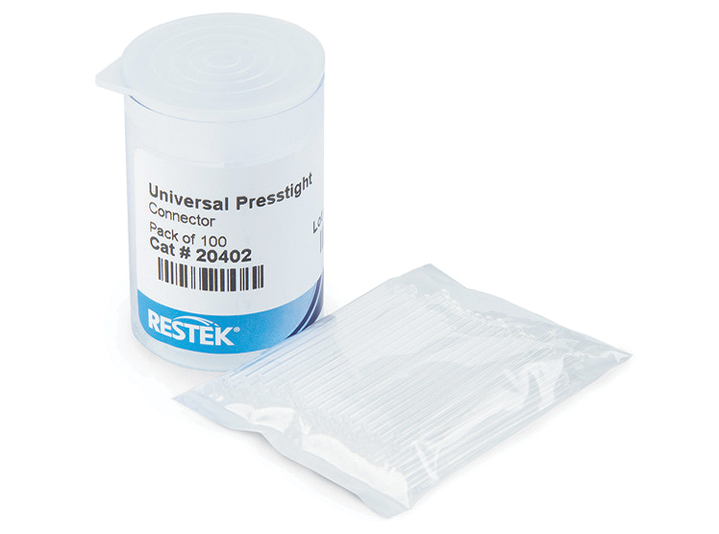

  • Restek Universal Press-Tight Connectors

    • Connect a guard column to an analytical column; repair a broken column;
    connect a column outlet to a transfer line
    • Standard deactivation maintains an inert pathway for most compounds
    • Siltek®-deactivated connectors are ideal for organochlorine pesticides and other sensitive analytes
