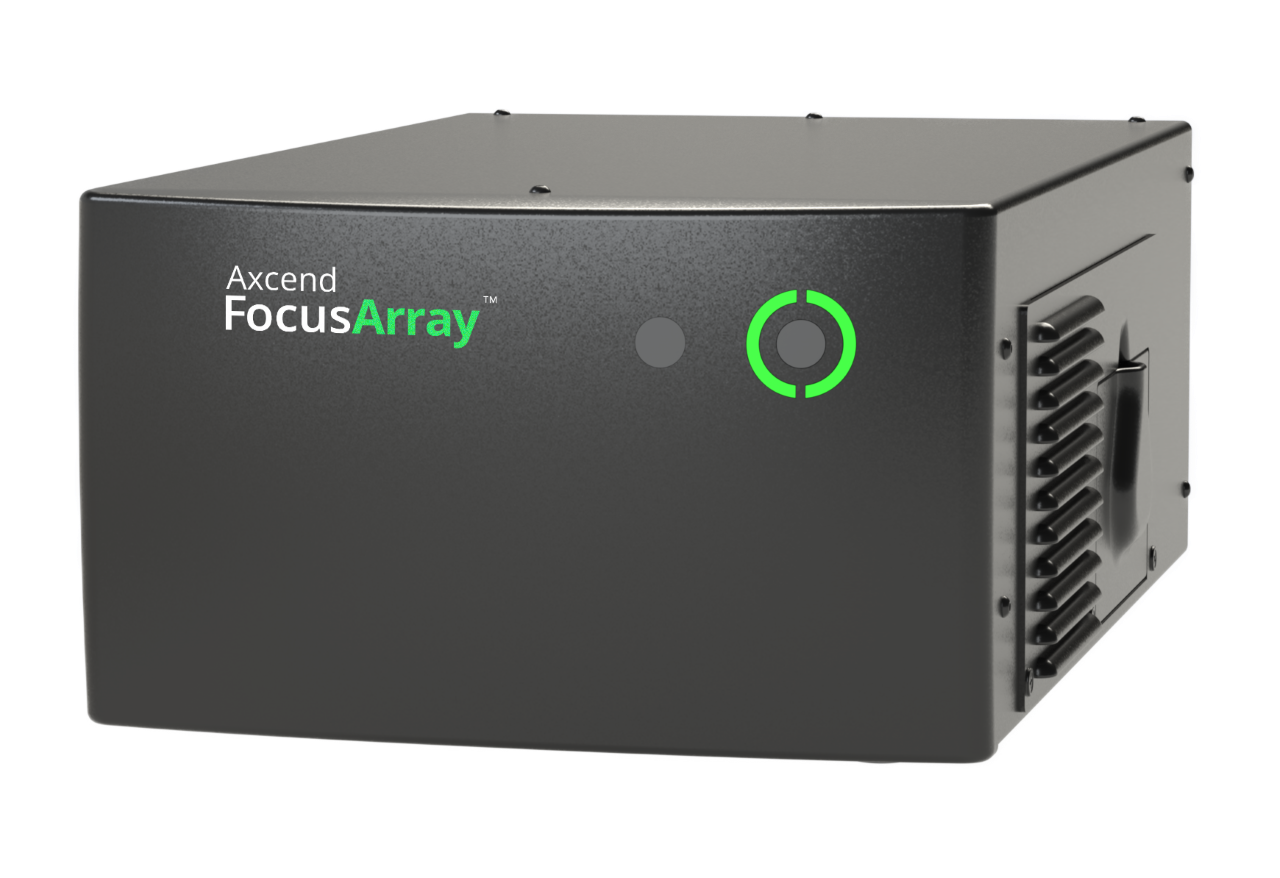

Axcend® FocusArray™ Full Spectrum Detector, 1.2 mm Pathlength, 12 nL Volume

Product Spec Sheet

High-Precision Detection for Capillary HPLC

Push analytical boundaries with advanced spectral coverage, precision data, and seamless Focus LC integration. Purpose-built for low-flow environments, FocusArray combines high-performance optics with Axcend’s compact LC innovation. The result? Confident quantification—even at trace levels—and better insight from every sample.

FocusArray delivers full-spectrum UV-Visible detection, enabling sharper peak profiles, fast acquisition rates, and precise quantification—even at low flow rates. Compact, rugged, and compatible with leading LC software, it’s designed to keep your workflows moving.

• Full UV-Visible Wavelength Range  Capture maximum absorbance across a wide spectral window (190-700 nm).
• Optimized Flow Cell  12 nL volume and 1.2 mm pathlength enable sharp peaks and high sensitivity.
• Fast, Reliable Data Acquisition  Collect data up to 100 Hz for precise peak integration and minimal baseline drift.
• Quick-Access Maintenance  Deuterium lamp access through a front-panel door makes routine maintenance easy.
• Smart Traceability & Compliance  Built-in RFID tracking for lamps and flow cells supports GLP and audit-ready traceability.
• Compact and Lightweight  Weighs just 12.6 lb, stacks cleanly with other Focus modules for a minimal lab footprint.
