SKU: LTILW1000NLT115Available Quantity : 0

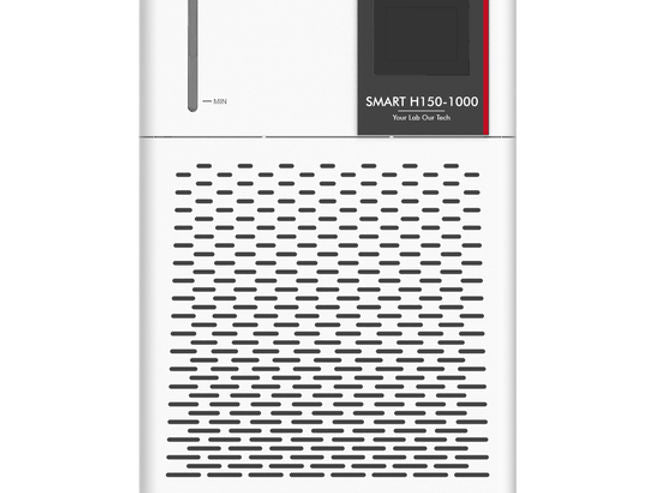

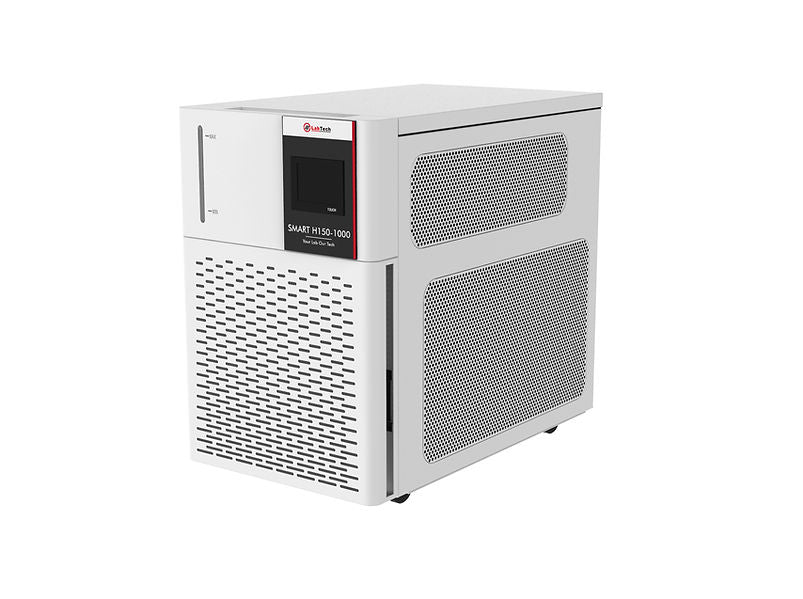

For lower temperature requirements, LabTech offers the H150-1000LT recirculating water chiller to ensure accurate and constant cooling conditions for instrumentation.
The chiller is provided with a touchscreen display to monitor and control instrument temperature from -20°C - 35°C and is designed to operate on 115V/60Hz with a standard 115V US plug for use with similar electrical requirements. It has a PID Temperature control mode to provide Temperature Stability at +/-0.1℃ with efficient compressor cooling. Cooling capacity for the unit is 1000W at 25℃ and 100W at -15℃ and is ideal for use with rotary evaporation, reflux extraction and AA/ICP applications. The H150-1000 has a pump capacity of 6.4L/min and a max pressure of 60psi for external circulation. The liquid circuit pressure is monitored and controlled via analog pressure indicator.
Furthermore, the unit is provided with a liquid level indicator for maximum safety of operations. The chiller has a built in drain to easily remove the liquid from the internal reservoir and water connections are located on the rear side.
When setting the H150-1000LT to a lower temperature, a coolant mixture of 50% glycol / 50% water should be used to ensure proper functioning of the chiller.
- Temperature Control Range : -20°C - 35°C
- Cooling Capacity @ 25°C - 1000W
- Cooling Capacity @-15°C - 100W
- Temperature Control Mode: PID
- Temperature Stability: +/-0.1℃
- Pump Capacity: 6.4/min
- Pump Maximum Pressure: 60psi
- Dimensions (L x W x H): 22 × 15 × 21 inches
- Weight : 112 lbs
- LabTech Manufacturer Number: LW1000LT
