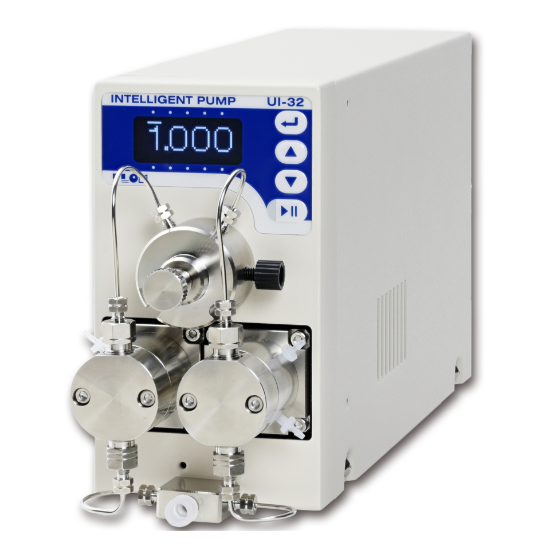

Intelligent Pump, UI-32-410S, Stainless Steel, 100 mL/min, 5 MPa (725 psi), Non-returnable, Non-refundable

Intelligent Pump version with Stainless Steel pumphead material and Max pressure of 5 MPa (725 psi)

• Flow accuracy: ± 2.0 % or ± 20 μL/min or less, whichever is greater (at 50 mL/min or the lower)
• Communication: RS232C, RS485 (between FLOM devices)
• Weight: Approx. 3.8 kg
• Flow Repeatability: < 0.3 % (0.1 - 5.0 mL/min)
• Flow mode: Continuous flow mode, Consistent pressure flow mode, Timer flow mode
• Safety Function: Upper / lower pressure limiters
• Environment Temperature: 5 - 40 ℃ , 20 - 80 % RH (Non-condensing)
• Pumphead material: SUS316
• Flow rate range: 0.01 - 99.99 mL/min
• Flow per stroke: 718 μL
• Plunger stroke: 10 mm
• Pressure accuracy: ± 0.2 MPa (± 29 psi)
• Remote control: Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) DC1-5V input : Flow rate setup , DC1-5V Output : Pressure signal
• Dimensions: 144 (H) × 79 (W) × 240 (D) mm , excluding protuberances
• Power: AC100 - 240 V (50/60 Hz) MAX 80 VA
• Wetted materials: Sapphire, Ruby, PCTFE, PFA, UHMW-PE, FFKM, ELGILOY®, PEEK
• Max pressure: 5 MPa (725 psi)
