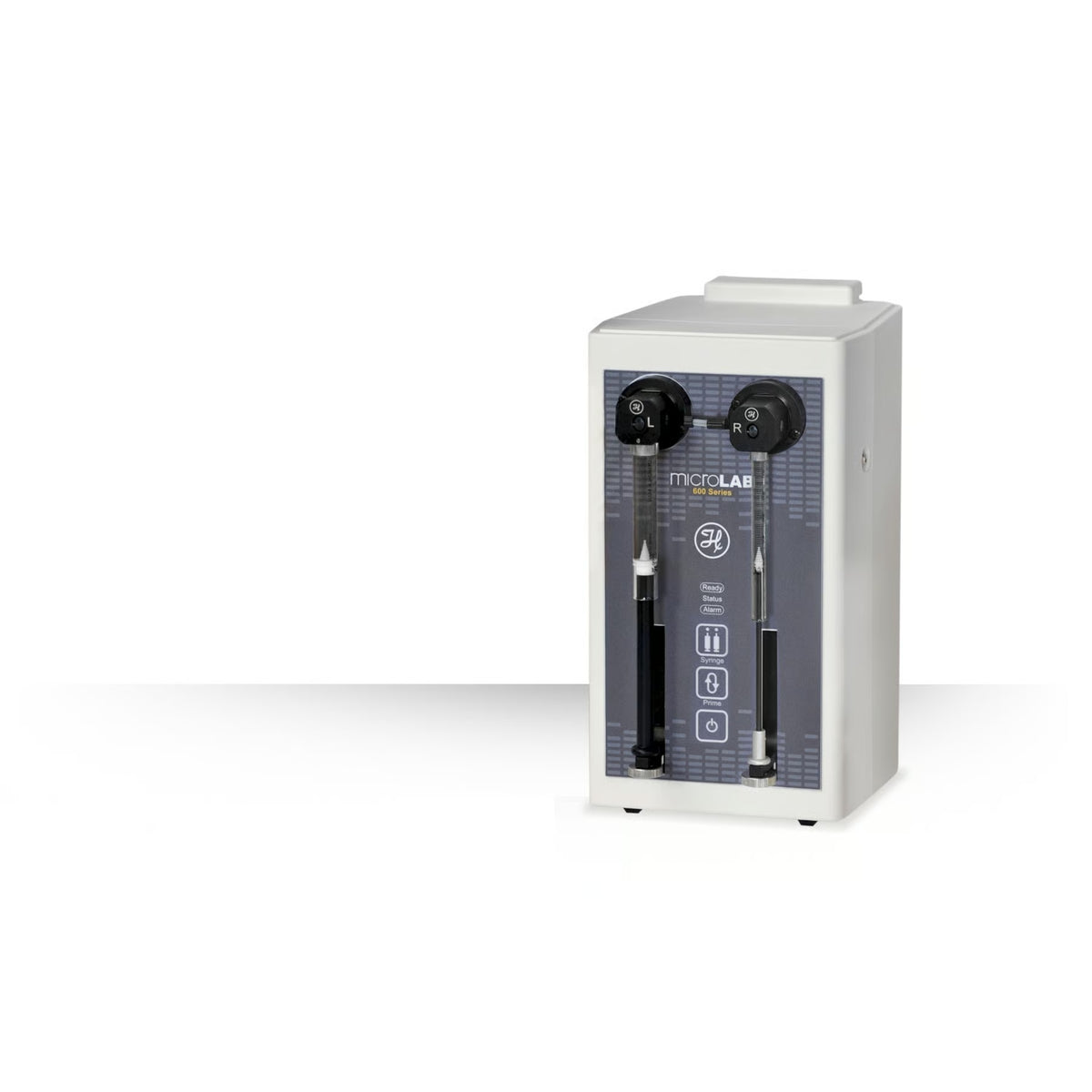

Microlab 600 Dual Syringe Pump, PC Controlled, 24VDC, 2.5A ***Custom Order - Please Select Right And Left Syringe, Volumes***

The Microlab 600 Dual Syringe Pump, PC Controlled features two user-selected and independently controlled syringes along with remote control and monitoring. It also offers Ethernet and serial RS-232 ports to facilitate communication.

Programming Language Options

• Visual C#
• Visual Basic
• LabVIEW

ML635 Includes

• Dual syringe pump and two user-selected syringes
• Left and right universal valves and valve plugs
• Cross tube assembly
• Power supply with country-specific cord
• Custom Programmer Kit

When to Use RS-232

• In conjunction with a Programmable Logic Controller, a controller not running on a Windows® platform, or when programming in a language that is incompatible with a .NET 2.0 framework.
• If the application has already been implemented using a legacy device, such as the Microlab 500.
• With applications using the Modular Valve Positioner (MVP) or other Hamilton RS-232 devices.

• Full syringe pump control of all details.
• Critical remote operations, like in clean rooms or in labs utilizing radioactive or dangerous materials.
• Programming via Microsoft .NET 2.0. The application programming interface (API) offers standardized on-screen help to simplify programming.

Specifications

• Power Rating: 24 VDC, 2.5A
• Power Requirements: 100-240V 1.5A max 50-60 Hz
• Program Memory: One program stored in memory while power is on
• Syringe Drive Mechanism: Stepper motor driven high precision lead screw with encoder
• Controller: PC Controlled
• Number of Syringe Drives: Two
• Probe: No Probe
• Fluid Path: Borosilicate, PTFE, CTFE, PFA
• Dimensions: 7 x 5.5 x 10.5 inch (177.8 x 139.7 x 266.7 mm)
• Weight: 13 lbs
