Oil Mist Element, Replacement, For EMF20

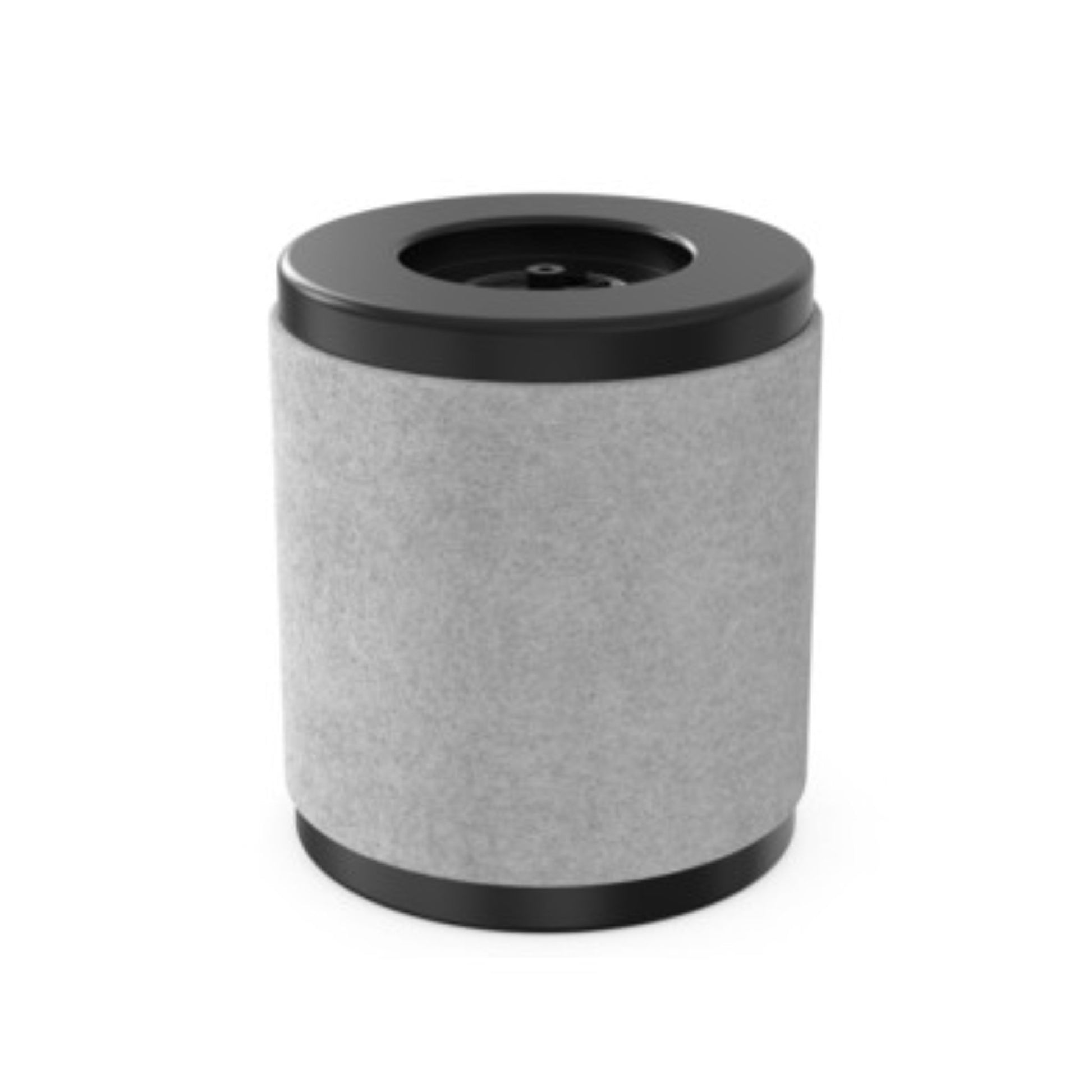

Oil Mist Filter Element EMF20

For Edwards EMF20 Oil Mist Exhaust Filters

The A22304199 EMF20 Oil Mist Filter Element is designed to efficiently capture oil mist from the exhaust of oil‑sealed rotary vane vacuum pumps, helping maintain a clean operating environment while protecting pump performance and longevity. Engineered for use in Edwards EMF20 oil mist exhaust filter assemblies, this element delivers reliable filtration and consistent airflow under demanding operating conditions.

Constructed from epoxy‑impregnated borosilicate glass fiber media, the A22304199 effectively separates and traps fine oil aerosols before they are discharged to atmosphere. Captured oil droplets drain back into the filter housing reservoir, reducing oil loss, minimizing environmental contamination, and supporting compliance with workplace cleanliness standards.

EMF20 filters are desgined for use with RV12, E1M18, E2M12, E2M18 rotary vane pumps.

EMF20 Rate Flow: 20 m3h-1

EMF20 Flange size (inlet and outlet): NW25

Features and Benefits

• High‑efficiency oil mist separation for oil‑sealed rotary vane vacuum pumps
• Durable glass fiber construction for long service life
• Helps reduce oil consumption and exhaust contamination
• Maintains proper exhaust back pressure and airflow
