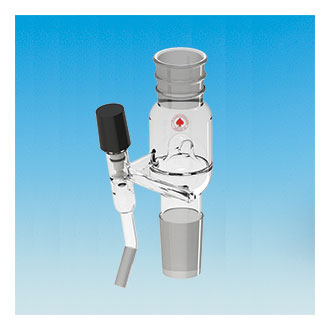

Reflux Distillation Splitter, 24/40 Top and Bottom Joints, 0-10mm Side Valve, 1/2" Ground Outlet

Reflux distillation splitter adapter for all sizes of reactors. Standard taper inner joint bottom and reinforced outer joint top. A slight angle to the bottom joint allows for addition to reactor heads with angled side joints. Geometry allows for straight flow path to the condenser. 0-10mm side valve, when open, directs condensate to a receiver, when closed directs condensate back into the evaporator flask. Valve connection is a 1/2 inch precision ground tube designed for use with compression style fittings. FETFE o-rings -011 & -111.
