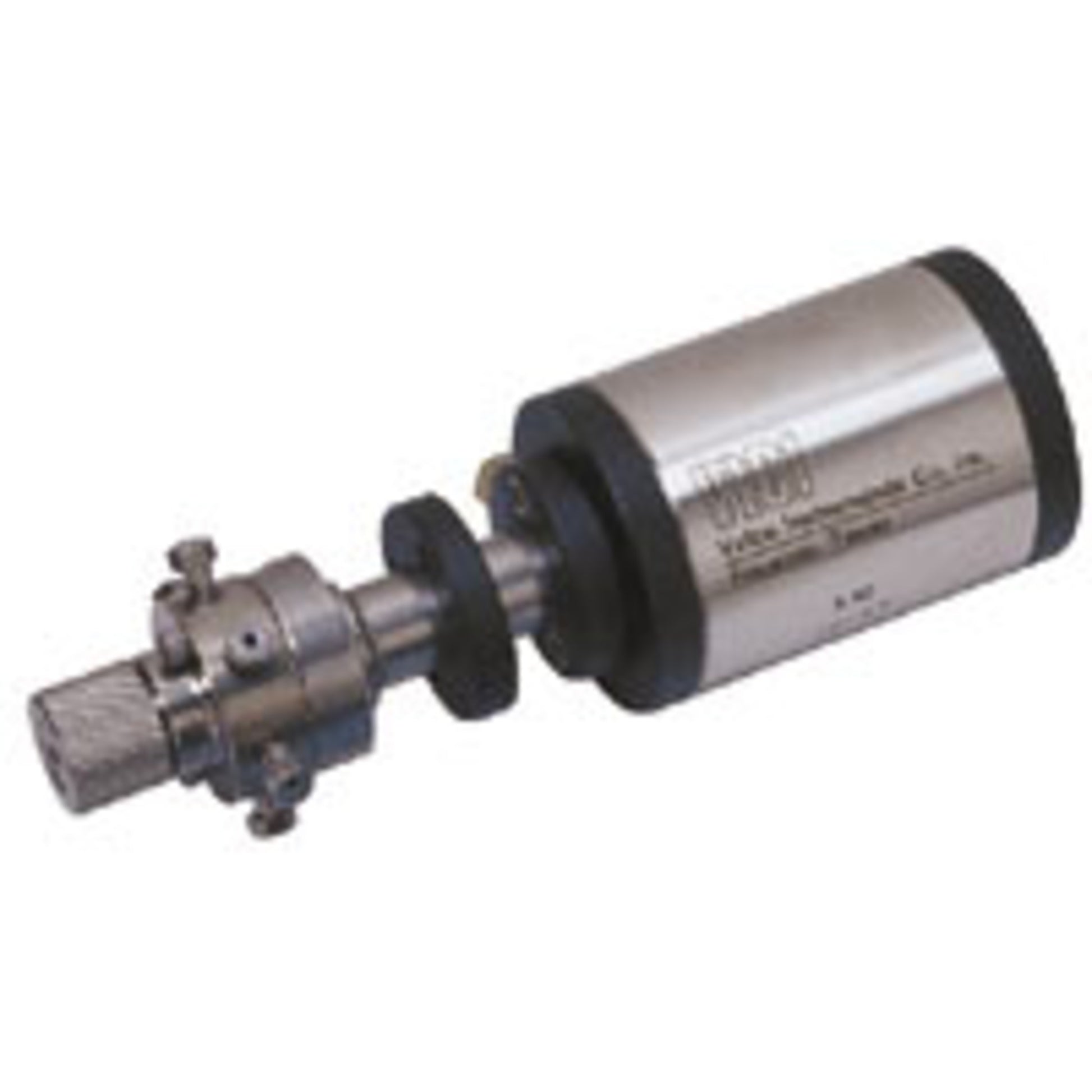

Standoff Assembly, 6" Standoff, Keyed Standoff, for Valco and Cheminert Selectors

Valves which will be installed in ovens or heated zones require a standoff assembly, which locates the actuator out of the heated zone and supports both the valve and the handle or actuator. The 5/8" outside diameter standoff tube extends through the oven wall and is secured by means of a clamp ring supplied with the assembly.

If you are converting an actuated valve from a closemount to a standoff application, the clamp ring and screws which secure the standoff to the actuator are not included in the standoff assembly. You must order the Clamp Ring VCR3 and screws in addition to the standoff assembly.
