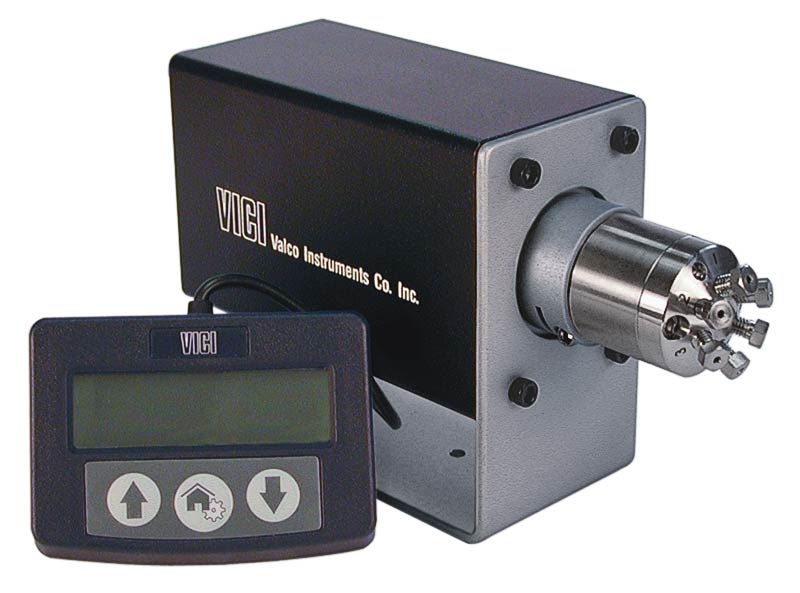

Universal Actuator, Medium Torque, RS-232/485, 24VDC, with 110/220VAC Power Supply

The universal actuator allows instrument manufacturers to use a single motor and control software to operate virtually any Valco or Cheminert rotary valve. This simplifies the electronic aspect of instrument design and streamlines the development process.

All our Valco and Cheminert valves and selectors, with their wide range of turning torques, are covered by three actuator versions: high speed, medium speed/medium torque, and high torque.

The standard interface allows simple positioning commands - Step and Home for selectors, A and B for two position - via direct input signals from switch closures, relay contacts, or TTL-compatible interfaces. A more extensive command set is available with the optional RS232/485, USB, or BCD interfaces.

Actuator includes universal 24 volt DC power supply and a manual remote. Mounting hardware must be ordered separately.

• One electric actuator works with two position valves and selectors
• Simplified, universal communication protocol
• Variety of interfaces
• Three versions for various valve torque requirements
• Autosensing universal power supply, 110/230 VAC to 24 VDC
