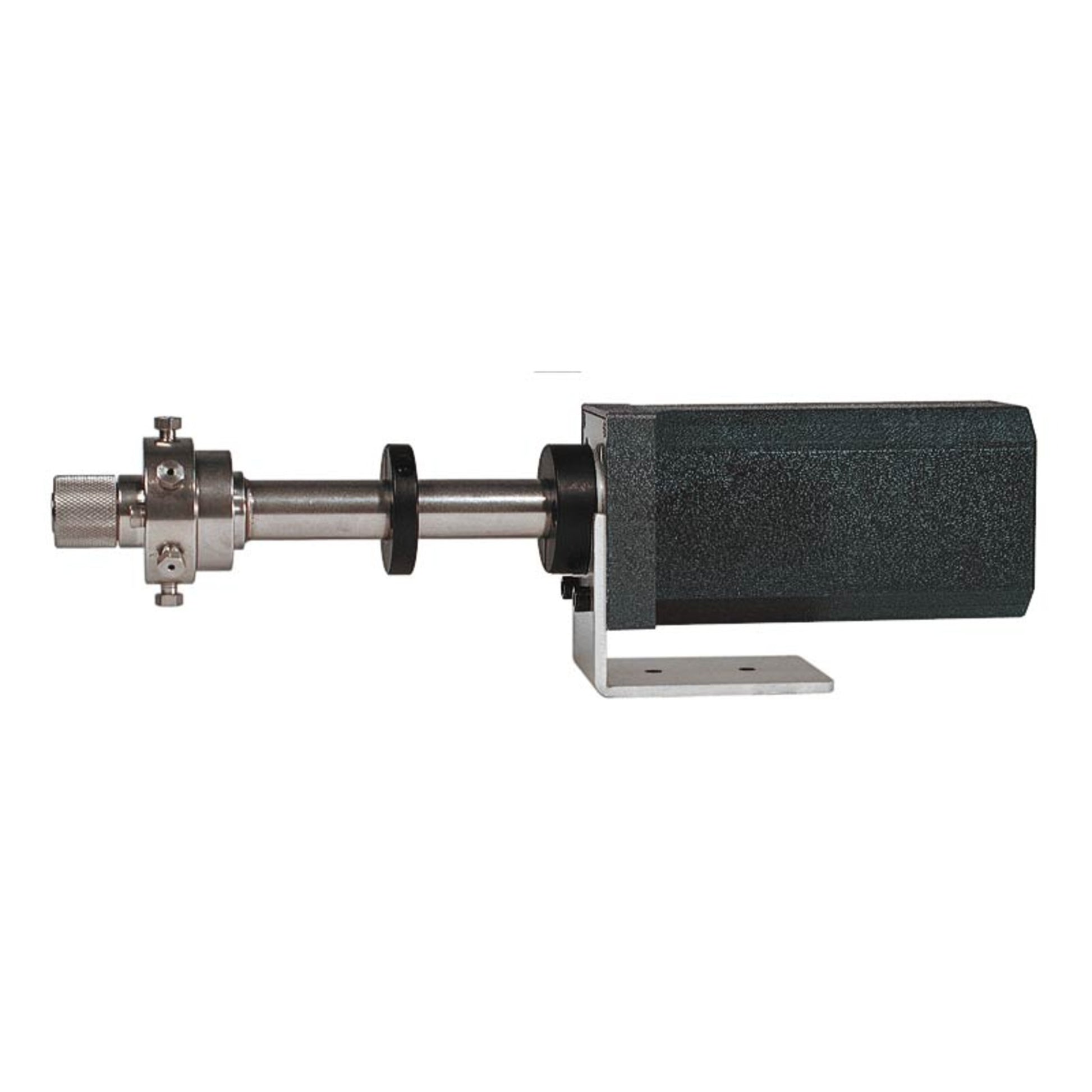

Valve, Diaphragm 10 Port, 1/16" x 0.75mm (0.030"), 200C/300PSI liq, N60/Polyimide

Name: Valve, Diaphragm 10 Port, 1/16" x 0.75mm (0.030"), 200C/300PSI liq, N60/Polyimide
Brand: VICI Valco Instruments
SKU: VDV223110
Availability: InStock

SKU: VDV223110

Available Quantity : 0

VICI 6 port and 10 port mini diaphragm valves for process GC can perform a wide variety of sample injection and switching functions. Valves are rated for 300 psi gas at 175°C, with Valco zero dead volume fittings for 1/32" or 1/16" tubing.

Actuator air (40-50 psi) is supplied to a side port with 10-32 female threads, permitting use of a variety of compression or barbed fittings. A 3-way solenoid is required for actuation. (Order separately.)

The valve is typically used for applications in which the sample is above ambient pressure, but can also be used at subambient pressures, such as when the sample is pulled through the valve by vacuum.

Includes stainless Steel nuts and ferrules.
